Azure Cosmos DB is a globally distributed database system that allows you to read and write data from the local replicas of your database and it transparently replicates the data to all the regions associated with your Cosmos account.

After completing this module, you'll be able to:

Identify the key benefits provided by Azure Cosmos DB
Describe the elements in an Azure Cosmos DB account and how they're organized
Explain the different consistency levels and choose the correct one for your project
Explore the APIs supported in Azure Cosmos DB and choose the appropriate API for your solution
Describe how request units impact costs
Create Azure Cosmos DB resources by using the Azure portal.
Identify classes and methods used to create resources
Create resources by using the Azure Cosmos DB .NET v3 SDK
Write stored procedures, triggers, and user-defined functions by using JavaScript
Implement change feed notifications

4.1 - Explore Azure Cosmos DB

Azure Cosmos DB is a fully managed NoSQL database designed to provide low latency, elastic scalability of throughput, well-defined semantics for data consistency, and high availability.

You can configure your databases to be globally distributed and available in any of the Azure regions. To lower the latency, place the data close to where your users are. Choosing the required regions depends on the global reach of your application and where your users are located.

With Azure Cosmos DB, you can add or remove the regions associated with your account at any time. Your application doesn't need to be paused or redeployed to add or remove a region.

Key benefits of global distribution

With its novel multi-master replication protocol, every region supports both writes and reads. The multi-master capability also enables:

Unlimited elastic write and read scalability.
99.999% read and write availability all around the world.
Guaranteed reads and writes served in less than 10 milliseconds at the 99th percentile.

Your application can perform near real-time reads and writes against all the regions you chose for your database. Azure Cosmos DB internally handles the data replication between regions with consistency level guarantees of the level you selected.

Running a database in multiple regions worldwide increases the availability of a database. If one region is unavailable, other regions automatically handle application requests. Azure Cosmos DB offers 99.999% read and write availability for multi-region databases.

Elements in an Azure Cosmos DB account

Currently, you can create a maximum of 50 Azure Cosmos DB accounts under an Azure subscription (can be increased via support request). After you create an account under your Azure subscription, you can manage the data in your account by creating databases, containers, and items.

The following image shows the hierarchy of different entities in an Azure Cosmos DB account:

Image showing the hierarchy of Azure Cosmos DB entities: Database accounts are at the top, databases are grouped under accounts, and containers are grouped under databases.

Azure Cosmos DB databases

You can create one or multiple Azure Cosmos DB databases under your account. A database is analogous to a namespace. A database is the unit of management for a set of Azure Cosmos DB containers.

Azure Cosmos DB containers

An Azure Cosmos DB container is where data is stored. Unlike most relational databases, which scale up with larger sizes of virtual machines, Azure Cosmos DB scales out.

Data is stored on one or more servers called partitions. To increase partitions, you increase throughput, or they grow automatically as storage increases. This relationship provides a virtually unlimited amount of throughput and storage for a container.

When you create a container, you need to supply a partition key. The partition key is a property that you select from your items to help Azure Cosmos DB distribute the data efficiently across partitions. Azure Cosmos DB uses the value of this property to route data to the appropriate partition to be written, updated, or deleted. You can also use the partition key in the WHERE clause in queries for efficient data retrieval.

The underlying storage mechanism for data in Azure Cosmos DB is called a physical partition. Physical partitions can have a throughput amount up to 10,000 Request Units per second, and they can store up to 50 GB of data. Azure Cosmos DB abstracts this partitioning concept with a logical partition, which can store up to 20 GB of data.

When you create a container, you configure throughput in one of the following modes:

Dedicated throughput: The throughput on a container is exclusively reserved for that container. There are two types of dedicated throughput: standard and autoscale.
Shared throughput: Throughput is specified at the database level and then shared with up to 25 containers within the database. Sharing of throughput excludes containers that are configured with their own dedicated throughput.

Azure Cosmos DB items

Depending on which API you use, individual data entities can be represented in various ways:

Azure Cosmos DB entity	API for NoSQL	API for Cassandra	API for MongoDB	API for Gremlin	API for Table
Azure Cosmos DB item	Item	Row	Document	Node or edge	Item

Consistency Levels

Azure Cosmos DB approaches data consistency as a spectrum of choices instead of two extremes. Strong consistency and eventual consistency are at the ends of the spectrum, but there are many consistency choices along the spectrum. Developers can use these options to make precise choices and granular tradeoffs with respect to high availability and performance.

Azure Cosmos DB offers five well-defined levels. From strongest to weakest, the levels are:

Strong
Bounded staleness
Session
Consistent prefix
Eventual

Each level provides availability and performance tradeoffs. The following image shows the different consistency levels as a spectrum.

Image showing data consistency as a spectrum.

The consistency levels are region-agnostic and are guaranteed for all operations, regardless of:

The region where the reads and writes are served
The number of regions associated with your Azure Cosmos DB account
Whether your account is configured with a single or multiple write regions.

You can configure the default consistency level on your Azure Cosmos DB account at any time. The default consistency level configured on your account applies to all Azure Cosmos DB databases and containers under that account. All reads and queries issued against a container or a database use the specified consistency level by default.

Read consistency applies to a single read operation scoped within a logical partition. The read operation can be issued by a remote client or a stored procedure.

Strong consistency

Strong consistency offers a linearizability guarantee. Linearizability refers to serving requests concurrently. The reads are guaranteed to return the most recent committed version of an item. A client never sees an uncommitted or partial write. Users are always guaranteed to read the latest committed write.

Bounded staleness consistency

In bounded staleness consistency, the lag of data between any two regions is always less than a specified amount. The amount can be "K" versions (that is, "updates") of an item or by "T" time intervals, whichever is reached first. In other words, when you choose bounded staleness, the maximum "staleness" of the data in any region can be configured in two ways:

The number of versions (K) of the item
The time interval (T) reads might lag behind the writes

Bounded Staleness is beneficial primarily to single-region write accounts with two or more regions. If the data lag in a region (determined per physical partition) exceeds the configured staleness value, writes for that partition are throttled until staleness is back within the configured upper bound.

For a single-region account, Bounded Staleness provides the same write consistency guarantees as Session and Eventual Consistency. With Bounded Staleness, data is replicated to a local majority (three replicas in a four replica set) in the single region.

Session consistency

In session consistency, within a single client session, reads are guaranteed to honor the read-your-writes, and write-follows-reads guarantees. This guarantee assumes a single “writer” session or sharing the session token for multiple writers.

Like all consistency levels weaker than Strong, writes are replicated to a minimum of three replicas (in a four replica set) in the local region, with asynchronous replication to all other regions.

Consistent prefix consistency

In consistent prefix, updates made as single document writes see eventual consistency. Updates made as a batch within a transaction, are returned consistent to the transaction in which they were committed. Write operations within a transaction of multiple documents are always visible together.

Assume two write operations are performed on documents Doc 1 and Doc 2, within transactions T1 and T2. When client does a read in any replica, the user sees either “Doc 1 v1 and Doc 2 v1” or “Doc 1 v2 and Doc 2 v2”, but never “Doc 1 v1 and Doc 2 v2” or “Doc 1 v2 and Doc 2 v1” for the same read or query operation.

Eventual consistency

In eventual consistency, there's no ordering guarantee for reads. In the absence of any further writes, the replicas eventually converge.

Eventual consistency is the weakest form of consistency because a client might read the values that are older than the ones it read before. Eventual consistency is ideal where the application doesn't require any ordering guarantees. Examples include count of Retweets, Likes, or nonthreaded comments.

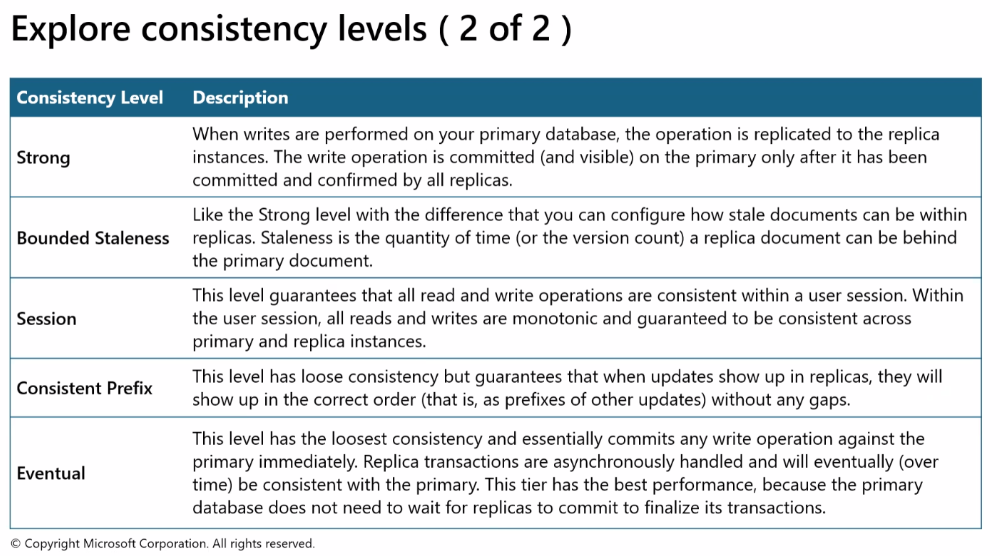

Reference Screenshot

An image

Cosmos APIs

Azure Cosmos DB offers multiple database APIs, which include NoSQL, MongoDB, PostgreSQL, Cassandra, Gremlin, and Table. By using these APIs, you can model real world data using documents, key-value, graph, and column-family data models. These APIs allow your applications to treat Azure Cosmos DB as if it were various other databases technologies, without the overhead of management, and scaling approaches. Azure Cosmos DB helps you to use the ecosystems, tools, and skills you already have for data modeling and querying with its various APIs.

### Considerations when choosing an API\

API for NoSQL is native to Azure Cosmos DB.

API for MongoDB, PostgreSQL, Cassandra, Gremlin, and Table implement the wire protocol of open-source database engines. These APIs are best suited if the following conditions are true:

If you have existing MongoDB, PostgreSQL Cassandra, or Gremlin applications
If you don't want to rewrite your entire data access layer
If you want to use the open-source developer ecosystem, client-drivers, expertise, and resources for your database

API for NoSQL

The Azure Cosmos DB API for NoSQL stores data in document format. It offers the best end-to-end experience as we have full control over the interface, service, and the SDK client libraries. Any new feature that is rolled out to Azure Cosmos DB is first available on API for NoSQL accounts. NoSQL accounts provide support for querying items using the Structured Query Language (SQL) syntax.

API for MongoDB

The Azure Cosmos DB API for MongoDB stores data in a document structure, via BSON format. It's compatible with MongoDB wire protocol; however, it doesn't use any native MongoDB related code. The API for MongoDB is a great choice if you want to use the broader MongoDB ecosystem and skills, without compromising on using Azure Cosmos DB features.

API for PostgreSQL

Azure Cosmos DB for PostgreSQL is a managed service for running PostgreSQL at any scale, with the Citus open source superpower of distributed tables. It stores data either on a single node, or distributed in a multi-node configuration.

API for Apache Cassandra

The Azure Cosmos DB API for Cassandra stores data in column-oriented schema. Apache Cassandra offers a highly distributed, horizontally scaling approach to storing large volumes of data while offering a flexible approach to a column-oriented schema. API for Cassandra in Azure Cosmos DB aligns with this philosophy to approaching distributed NoSQL databases. This API for Cassandra is wire protocol compatible with native Apache Cassandra.

API for Apache Gremlin

The Azure Cosmos DB API for Gremlin allows users to make graph queries and stores data as edges and vertices.

Use the API for Gremlin for scenarios:

Involving dynamic data
Involving data with complex relations
Involving data that is too complex to be modeled with relational databases
If you want to use the existing Gremlin ecosystem and skills

API for Table

The Azure Cosmos DB API for Table stores data in key/value format. If you're currently using Azure Table storage, you might see some limitations in latency, scaling, throughput, global distribution, index management, low query performance. API for Table overcomes these limitations and the recommendation is to migrate your app if you want to use the benefits of Azure Cosmos DB. API for Table only supports OLTP scenarios.

Request units

With Azure Cosmos DB, you pay for the throughput you provision and the storage you consume on an hourly basis. Throughput must be provisioned to ensure that sufficient system resources are available for your Azure Cosmos database always.

The cost of all database operations is normalized in Azure Cosmos DB and expressed by request units (or RUs, for short). A request unit represents the system resources such as CPU, IOPS, and memory that are required to perform the database operations supported by Azure Cosmos DB.

The cost to do a point read, which is fetching a single item by its ID and partition key value, for a 1-KB item is 1RU. All other database operations are similarly assigned a cost using RUs. No matter which API you use to interact with your Azure Cosmos container, costs are measured by RUs. Whether the database operation is a write, point read, or query, costs are measured in RUs.

The following image shows the high-level idea of RUs:

Image showing how database operations consume request units.

The type of Azure Cosmos DB account you're using determines the way consumed RUs get charged. There are three modes in which you can create an account:

Provisioned throughput mode: In this mode, you provision the number of RUs for your application on a per-second basis in increments of 100 RUs per second. To scale the provisioned throughput for your application, you can increase or decrease the number of RUs at any time in increments or decrements of 100 RUs. You can make your changes either programmatically or by using the Azure portal. You can provision throughput at container and database granularity level.
Serverless mode: In this mode, you don't have to provision any throughput when creating resources in your Azure Cosmos DB account. At the end of your billing period, you get billed for the number of request units that have been consumed by your database operations.
Autoscale mode: In this mode, you can automatically and instantly scale the throughput (RU/s) of your database or container based on its usage. This scaling operation doesn't affect the availability, latency, throughput, or performance of the workload. This mode is well suited for mission-critical workloads that have variable or unpredictable traffic patterns, and require SLAs on high performance and scale.

4.2 - Work with CosmosDB

CosmosClient

Creates a new CosmosClient with a connection string. CosmosClient is thread-safe. The recommendation is to maintain a single instance of CosmosClient per lifetime of the application that enables efficient connection management and performance.

CosmosClient client = new CosmosClient(endpoint, key);

Database examples

Create a database

The CosmosClient.CreateDatabaseAsync method throws an exception if a database with the same name already exists.

// New instance of Database class referencing the server-side database
Database database1 = await client.CreateDatabaseAsync(
    id: "adventureworks-1"
);

The CosmosClient.CreateDatabaseIfNotExistsAsync checks if a database exists, and if it doesn't, creates it. Only the database id is used to verify if there's an existing database.

// New instance of Database class referencing the server-side database
Database database2 = await client.CreateDatabaseIfNotExistsAsync(
    id: "adventureworks-2"
);

Read a database by ID

Reads a database from the Azure Cosmos DB service as an asynchronous operation.

DatabaseResponse readResponse = await database.ReadAsync();

Delete a database

Delete a Database as an asynchronous operation.

await database.DeleteAsync();

Container examples

Create a container

The Database.CreateContainerIfNotExistsAsync method checks if a container exists, and if it doesn't, it creates it. Only the container id is used to verify if there's an existing container.

// Set throughput to the minimum value of 400 RU/s
ContainerResponse simpleContainer = await database.CreateContainerIfNotExistsAsync(
    id: containerId,
    partitionKeyPath: partitionKey,
    throughput: 400);

Get a container by ID

Container container = database.GetContainer(containerId);
ContainerProperties containerProperties = await container.ReadContainerAsync();

Delete a container

Delete a Container as an asynchronous operation.

await database.GetContainer(containerId).DeleteContainerAsync();

Item examples

Create an item

Use the Container.CreateItemAsync method to create an item. The method requires a JSON serializable object that must contain an id property, and a partitionKey.

ItemResponse<SalesOrder> response = await container.CreateItemAsync(salesOrder, new PartitionKey(salesOrder.AccountNumber));

Read an item

Use the Container.ReadItemAsync method to read an item. The method requires type to serialize the item to along with an id property, and a partitionKey.

string id = "[id]";
string accountNumber = "[partition-key]";
ItemResponse<SalesOrder> response = await container.ReadItemAsync(id, new PartitionKey(accountNumber));

Query an item

The Container.GetItemQueryIterator method creates a query for items under a container in an Azure Cosmos database using a SQL statement with parameterized values. It returns a FeedIterator.

QueryDefinition query = new QueryDefinition(
    "select * from sales s where s.AccountNumber = @AccountInput ")
    .WithParameter("@AccountInput", "Account1");

FeedIterator<SalesOrder> resultSet = container.GetItemQueryIterator<SalesOrder>(
    query,
    requestOptions: new QueryRequestOptions()
    {
        PartitionKey = new PartitionKey("Account1"),
        MaxItemCount = 1
    });

AZ Commands for CosmosDB

az group create --location <myLocation> --name az204-cosmos-rg

az cosmosdb create --name <myCosmosDBacct> --resource-group az204-cosmos-rg

# Retrieve the primary key
az cosmosdb keys list --name <myCosmosDBacct> --resource-group az204-cosmos-rg

Stored procedures

Azure Cosmos DB provides language-integrated, transactional execution of JavaScript that lets you write stored procedures, triggers, and user-defined functions (UDFs). To call a stored procedure, trigger, or user-defined function, you need to register it. For more information, see How to work with stored procedures, triggers, user-defined functions in Azure Cosmos DB.

Writing stored procedures

Stored procedures can create, update, read, query, and delete items inside an Azure Cosmos container. Stored procedures are registered per collection, and can operate on any document or an attachment present in that collection.

Here's a simple stored procedure that returns a "Hello World" response.

var helloWorldStoredProc = {
    id: "helloWorld",
    serverScript: function () {
        var context = getContext();
        var response = context.getResponse();

        response.setBody("Hello, World");
    }
}

The context object provides access to all operations that can be performed in Azure Cosmos DB, and access to the request and response objects. In this case, you use the response object to set the body of the response to be sent back to the client.

Create an item using stored procedure

When you create an item by using a stored procedure, the item is inserted into the Azure Cosmos DB container and an ID for the newly created item is returned. Creating an item is an asynchronous operation and depends on the JavaScript callback functions. The callback function has two parameters: one for the error object in case the operation fails, and another for a return value, in this case, the created object. Inside the callback, you can either handle the exception or throw an error. If a callback isn't provided and there's an error, the Azure Cosmos DB runtime throws an error.

The stored procedure also includes a parameter to set the description as a boolean value. When the parameter is set to true and the description is missing, the stored procedure throws an exception. Otherwise, the rest of the stored procedure continues to run.

This stored procedure takes as input documentToCreate, the body of a document to be created in the current collection. All such operations are asynchronous and depend on JavaScript function callbacks.

var createDocumentStoredProc = {
    id: "createMyDocument",
    body: function createMyDocument(documentToCreate) {
        var context = getContext();
        var collection = context.getCollection();
        var accepted = collection.createDocument(collection.getSelfLink(),
              documentToCreate,
              function (err, documentCreated) {
                  if (err) throw new Error('Error' + err.message);
                  context.getResponse().setBody(documentCreated.id)
              });
        if (!accepted) return;
    }
}

Arrays as input parameters for stored procedures

When defining a stored procedure in the Azure portal, input parameters are always sent as a string to the stored procedure. Even if you pass an array of strings as an input, the array is converted to string and sent to the stored procedure. To work around this, you can define a function within your stored procedure to parse the string as an array. The following code shows how to parse a string input parameter as an array:

function sample(arr) {
    if (typeof arr === "string") arr = JSON.parse(arr);

    arr.forEach(function(a) {
        // do something here
        console.log(a);
    });
}

Bounded execution

All Azure Cosmos DB operations must complete within a limited amount of time. Stored procedures have a limited amount of time to run on the server. All collection functions return a Boolean value that represents whether that operation completes or not.

Transactions within stored procedures

You can implement transactions on items within a container by using a stored procedure. JavaScript functions can implement a continuation-based model to batch or resume execution. The continuation value can be any value of your choice and your applications can then use this value to resume a transaction from a new starting point. The following diagram depicts how the transaction continuation model can be used to repeat a server-side function until the function finishes its entire processing workload.

This diagram depicts how the transaction continuation model can be used to repeat a server-side function until the function finishes its entire processing workload.

Create triggers and user-defined functions

Azure Cosmos DB supports pretriggers and post-triggers. Pretriggers are executed before modifying a database item and post-triggers are executed after modifying a database item. Triggers aren't automatically executed. They must be specified for each database operation where you want them to execute. After you define a trigger, you should register it by using the Azure Cosmos DB SDKs.

For examples of how to register and call a trigger, see pretriggers and post-triggers.

Pretriggers

The following example shows how a pretrigger is used to validate the properties of an Azure Cosmos item that is being created. It adds a timestamp property to a newly added item if it doesn't contain one.

function validateToDoItemTimestamp() {
    var context = getContext();
    var request = context.getRequest();

    // item to be created in the current operation
    var itemToCreate = request.getBody();

    // validate properties
    if (!("timestamp" in itemToCreate)) {
        var ts = new Date();
        itemToCreate["timestamp"] = ts.getTime();
    }

    // update the item that will be created
    request.setBody(itemToCreate);
}

Pretriggers can't have any input parameters. The request object in the trigger is used to manipulate the request message associated with the operation. In the previous example, the pretrigger is run when creating an Azure Cosmos item and the request message body contains the item to be created in JSON format.

When triggers are registered, you can specify the operations that it can run with. This trigger should be created with a TriggerOperation value of TriggerOperation.Create, using the trigger in a replace operation isn't permitted.

For examples of how to register and call a pretrigger, visit the pretriggers article.

Post-triggers

The following example shows a post-trigger. This trigger queries for the metadata item and updates it with details about the newly created item.

function updateMetadata() {
var context = getContext();
var container = context.getCollection();
var response = context.getResponse();

// item that was created
var createdItem = response.getBody();

// query for metadata document
var filterQuery = 'SELECT * FROM root r WHERE r.id = "_metadata"';
var accept = container.queryDocuments(container.getSelfLink(), filterQuery,
    updateMetadataCallback);
if(!accept) throw "Unable to update metadata, abort";

function updateMetadataCallback(err, items, responseOptions) {
    if(err) throw new Error("Error" + err.message);
        if(items.length != 1) throw 'Unable to find metadata document';

        var metadataItem = items[0];

        // update metadata
        metadataItem.createdItems += 1;
        metadataItem.createdNames += " " + createdItem.id;
        var accept = container.replaceDocument(metadataItem._self,
            metadataItem, function(err, itemReplaced) {
                    if(err) throw "Unable to update metadata, abort";
            });
        if(!accept) throw "Unable to update metadata, abort";
        return;
    }
}

One thing that is important to note is the transactional execution of triggers in Azure Cosmos DB. The post-trigger runs as part of the same transaction for the underlying item itself. An exception during the post-trigger execution fails the whole transaction. Anything committed is rolled back and an exception returned.

User-defined functions

The following sample creates a UDF to calculate income tax for various income brackets. This user-defined function would then be used inside a query. For the purposes of this example assume there's a container called "Incomes" with properties as follows:

{
   "name": "User One",
   "country": "USA",
   "income": 70000
}

The following code sample is a function definition to calculate income tax for various income brackets:

function tax(income) {

        if(income == undefined)
            throw 'no input';

        if (income < 1000)
            return income * 0.1;
        else if (income < 10000)
            return income * 0.2;
        else
            return income * 0.4;
    }

Explore change feed in Azure Cosmos DB

Change feed in Azure Cosmos DB is a persistent record of changes to a container in the order they occur. Change feed support in Azure Cosmos DB works by listening to an Azure Cosmos DB container for any changes. It then outputs the sorted list of documents that were changed in the order in which they were modified. The persisted changes can be processed asynchronously and incrementally, and the output can be distributed across one or more consumers for parallel processing.

Change feed and different operations

Today, you see all inserts and updates in the change feed. You can't filter the change feed for a specific type of operation. Currently change feed doesn't log delete operations. As a workaround, you can add a soft marker on the items that are being deleted. For example, you can add an attribute in the item called "deleted," set its value to "true," and then set a time-to-live (TTL) value on the item. Setting the TTL ensures that the item is automatically deleted.

Reading Azure Cosmos DB change feed

You can work with the Azure Cosmos DB change feed using either a push model or a pull model. With a push model, the change feed processor pushes work to a client that has business logic for processing this work. However, the complexity in checking for work and storing state for the last processed work is handled within the change feed processor.

With a pull model, the client has to pull the work from the server. In this case, the client has business logic for processing work and also stores state for the last processed work. The client handles load balancing across multiple clients processing work in parallel, and handling errors.

Note

It is recommended to use the push model because you won't need to worry about polling the change feed for future changes, storing state for the last processed change, and other benefits.

Most scenarios that use the Azure Cosmos DB change feed use one of the push model options. However, there are some scenarios where you might want the extra low level control of the pull model. The extra low-level control includes:

Reading changes from a particular partition key
Controlling the pace at which your client receives changes for processing
Doing a one-time read of the existing data in the change feed (for example, to do a data migration)

Reading change feed with a push model

There are two ways you can read from the change feed with a push model: Azure Functions Azure Cosmos DB triggers, and the change feed processor library. Azure Functions uses the change feed processor behind the scenes, so these are both similar ways to read the change feed. Think of Azure Functions as simply a hosting platform for the change feed processor, not an entirely different way of reading the change feed. Azure Functions uses the change feed processor behind the scenes. It automatically parallelizes change processing across your container's partitions.

Azure Functions

You can create small reactive Azure Functions that are automatically triggered on each new event in your Azure Cosmos DB container's change feed. With the Azure Functions trigger for Azure Cosmos DB, you can use the Change Feed Processor's scaling and reliable event detection functionality without the need to maintain any worker infrastructure.

Change feed processor

The change feed processor is part of the Azure Cosmos DB .NET V3 and Java V4 SDKs. It simplifies the process of reading the change feed and distributes the event processing across multiple consumers effectively.

There are four main components of implementing the change feed processor:

The monitored container: The monitored container has the data from which the change feed is generated. Any inserts and updates to the monitored container are reflected in the change feed of the container.
The lease container: The lease container acts as a state storage and coordinates processing the change feed across multiple workers. The lease container can be stored in the same account as the monitored container or in a separate account.
The compute instance: A compute instance hosts the change feed processor to listen for changes. Depending on the platform, it might represented by a VM, a kubernetes pod, an Azure App Service instance, an actual physical machine. It has a unique identifier referenced as the instance name throughout this article.
The delegate: The delegate is the code that defines what you, the developer, want to do with each batch of changes that the change feed processor reads.

When implementing the change feed processor the point of entry is always the monitored container, from a Container instance you call GetChangeFeedProcessorBuilder:

/// <summary>
/// Start the Change Feed Processor to listen for changes and process them with the HandleChangesAsync implementation.
/// </summary>
private static async Task<ChangeFeedProcessor> StartChangeFeedProcessorAsync(
    CosmosClient cosmosClient,
    IConfiguration configuration)
{
    string databaseName = configuration["SourceDatabaseName"];
    string sourceContainerName = configuration["SourceContainerName"];
    string leaseContainerName = configuration["LeasesContainerName"];

    Container leaseContainer = cosmosClient.GetContainer(databaseName, leaseContainerName);
    ChangeFeedProcessor changeFeedProcessor = cosmosClient.GetContainer(databaseName, sourceContainerName)
        .GetChangeFeedProcessorBuilder<ToDoItem>(processorName: "changeFeedSample", onChangesDelegate: HandleChangesAsync)
            .WithInstanceName("consoleHost")
            .WithLeaseContainer(leaseContainer)
            .Build();

    Console.WriteLine("Starting Change Feed Processor...");
    await changeFeedProcessor.StartAsync();
    Console.WriteLine("Change Feed Processor started.");
    return changeFeedProcessor;
}

Where the first parameter is a distinct name that describes the goal of this processor and the second name is the delegate implementation that handles changes. Following is an example of a delegate:

/// <summary>
/// The delegate receives batches of changes as they are generated in the change feed and can process them.
/// </summary>
static async Task HandleChangesAsync(
    ChangeFeedProcessorContext context,
    IReadOnlyCollection<ToDoItem> changes,
    CancellationToken cancellationToken)
{
    Console.WriteLine($"Started handling changes for lease {context.LeaseToken}...");
    Console.WriteLine($"Change Feed request consumed {context.Headers.RequestCharge} RU.");
    // SessionToken if needed to enforce Session consistency on another client instance
    Console.WriteLine($"SessionToken ${context.Headers.Session}");

    // We may want to track any operation's Diagnostics that took longer than some threshold
    if (context.Diagnostics.GetClientElapsedTime() > TimeSpan.FromSeconds(1))
    {
        Console.WriteLine($"Change Feed request took longer than expected. Diagnostics:" + context.Diagnostics.ToString());
    }

    foreach (ToDoItem item in changes)
    {
        Console.WriteLine($"Detected operation for item with id {item.id}, created at {item.creationTime}.");
        // Simulate some asynchronous operation
        await Task.Delay(10);
    }

    Console.WriteLine("Finished handling changes.");
}

Afterwards, you define the compute instance name or unique identifier with WithInstanceName, this should be unique and different in each compute instance you're deploying, and finally, which is the container to maintain the lease state with WithLeaseContainer.

Calling Build gives you the processor instance that you can start by calling StartAsync.

The normal life cycle of a host instance is:

Read the change feed.
If there are no changes, sleep for a predefined amount of time (customizable with WithPollInterval in the Builder) and go to #1.
If there are changes, send them to the delegate.
When the delegate finishes processing the changes successfully, update the lease store with the latest processed point in time and go to #1.

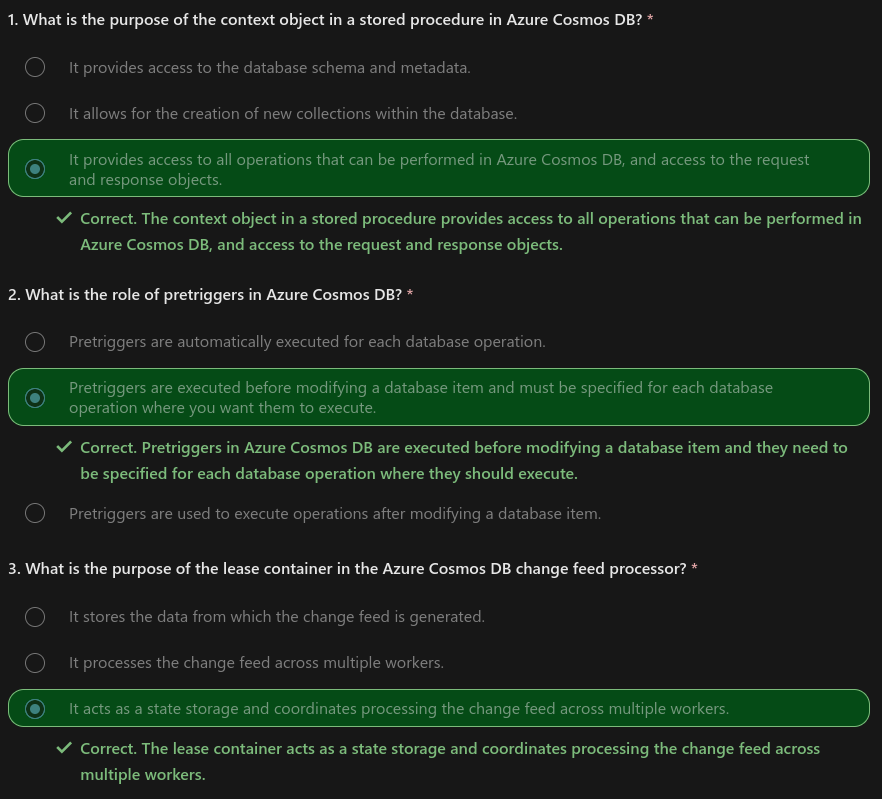

An image
